| Nominal Battery System Voltage | 24VDC | 48VDC |
| INVERTER OUTPUT | ||
| Rated Power | 4000VA/4000W | 6000VA/6000W |
| Surge Power | 8000W | 12000W |
| Waveform | Pure sine wave | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | |
| 90% | ||
| Transfer Time | 10ms (UPS / VDE4105) / 20ms (APL) | |
| AC INPUT | ||
| Voltage | 230VAC±5% | |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | |
| Frequency Range | 50Hz / 60Hz(Auto sensing) | |
| BATTERY | ||
| Normal voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27.4VDC | 54.8VDC |
| Overcharge Protection | 30VDC | 60VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum PV input voltage | 18A | 27A |
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) | |
| Maximum PV Array Power | 5500W | 8500W |
| PV Array MPPT Voltage Range | 90~430 VDC | 120~430 VDC |
| Maximum Solar Charge Current | 100A | 120A |
| Maximum AC Charge Current | 80A | 100A |
| Maximum Charge Current | 100A | 120A |
| MECHANICAL SPECIFICATIONS | ||
| Machine Dimension (W*H*D)(mm) | 322*486*134 | 309*505*147 |
| Package Dimension (W*H*D)(mm) | 575*229*425 | 603*260*400 |
| N.W(kg) | 10.6 | 12.9 |
| G.W(kg) | 12 | 13.8 |
| OTHER | ||
| Humidity | 5% to 95% Relative humidity (Non-condensing) | |
| Operating Temperature | 0°C~50°C | |
| Storage Temperature | -15℃ ~60℃ | |
-15%
MAGNUM DUAL PV 6200 5.5KW
Original price was: ₨150,000.00.₨135,000.00Current price is: ₨135,000.00.
OPTIMUM DUAL PV 8500 6KW
Original price was: ₨185,000.00.₨165,000.00Current price is: ₨165,000.00.

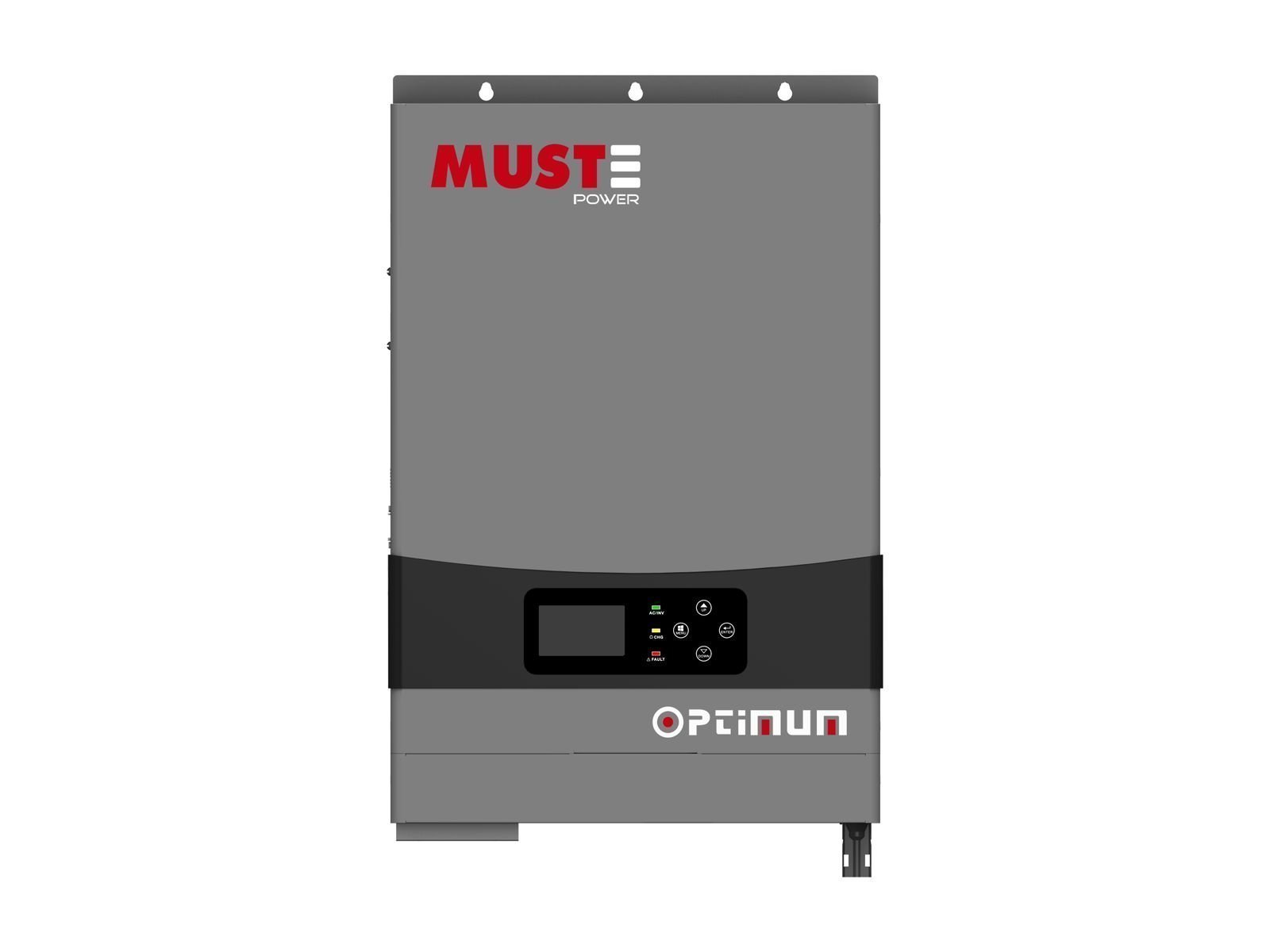

OPTIMUM DUAL PV 5500 4KW
Original price was: ₨135,000.00.₨115,000.00Current price is: ₨115,000.00.
Optimum Series
4~6KW | 500V | WiFi
Optimum Series is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. Optimum Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 90~430V, which can help customers make full use of solar energy.
4~6KW | 500V | WiFi
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ MAX PV Array Open Circuit Voltage: 500V
■ Combining solar system, AC utility, and battery power source to supply
continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support USB, RS485 monitoring function
■ Parallel operation with up to 3 units
■ WIFI remote monitoring (optional)
■ With BMS lithium battery communication function
■ With AC/PV lithium battery activation function
■ Dual outputs for smart load management
